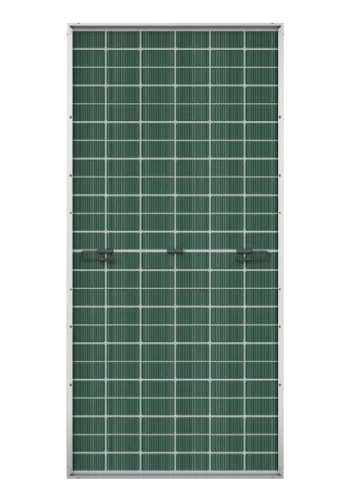

hi-mo-x6-max-explorer
Up to 625
Module Power
Up to 23.10
Module Efficiency
15 Years
Product Warranty
30 Years
Power Warranty
Core Advantages
Water Resistance Encapsulation
Long-Term Reliability
Ultra-Low Attenuation
Enhanced Benefits
FAQs
- The LONGi Hi-MO X6 Max Guardian series is positioned as a "function adding series products". Currently, there are two product designs available : Hi-MO X6 Max Guardian (Anti-Dust Design) and Hi-MO X6 Max Guardian (Anti Humidity & Heat Design). More modules will be launch in the future according to market demands.
LONGi identified moisture and heat as core factors affecting the degradation of solar modules through in-depth analysis of user pain points. The issue of moisture and heat is becoming increasingly prevalent with climate change, and it is a concern continuously monitored by international standards organizations, authoritative testing agencies, and international academic forums regarding the performance decay of photovoltaics in moist and hot environments and solutions to mitigate it. In moist and hot environments, the degradation of modules accelerates, leading to issues such as leakage, encapsulant yellowing and aging, and module failure. These problems can significantly reduce the power generation capacity of the modules and even pose the risk of major disasters. In 2021, LONGi recognized that the accelerated degradation of traditional modules under moist and hot conditions compromised customer value. This insight led to specialized research and product development. In 2022, LONGi innovatively developed the HPBC cell technology to address the challenges of moisture and heat. A breakthrough in moisture and heat-resistant high-barrier encapsulation technology was achieved in 2023, and by 2024, the Guardian (Anti Humidity & Heat Design) bifacial dual-glass product was successfully mass-produced. This product demonstrates superior reliability in moist and hot environments, delivering greater value to users.
Mechanical Parameters
|
Layout |
144(6X24) |
|---|---|
|
Junction box |
Split junction box, IP68 |
|
Weight |
33.5kg |
|
Size |
2382X1134X30mm |
|
Packaging |
36 pcs./pallet 144 pcs./20GP 720 pcs./40HC 720 pcs./13.5m FR 864 pcs./17.5m FR |
Electrical Performance Parameters (STC Test)
| Module model | LR7-72HTDR-600M | LR7-72HTDR-605M | LR7-72HTDR-610M | LR7-72HTDR-615M | LR7-72HTDR-620M | LR7-72HTDR-625M |
|---|---|---|---|---|---|---|
| Maximum power (Pmax/W) | 600 | 605 | 610 | 615 | 620 | 625 |
| Open-circuit voltage (Voc/V) | 52.51 | 52.66 | 52.81 | 52.96 | 53.11 | 53.26 |
| Short circuit current (Isc/A) | 14.55 | 14.62 | 14.69 | 14.75 | 14.82 | 14.90 |
| Peak power voltage (Vmp/V) | 44.19 | 44.33 | 44.48 | 44.63 | 44.78 | 44.93 |
| Peak power current (Imp/A) | 13.58 | 13.65 | 13.72 | 13.78 | 13.85 | 13.92 |
Electrical Performance Parameters (NOCT Test)
| Module model | LR7-72HTDR-600M | LR7-72HTDR-605M | LR7-72HTDR-610M | LR7-72HTDR-615M | LR7-72HTDR-620M | LR7-72HTDR-625M |
|---|---|---|---|---|---|---|
| Maximum power (Pmax/W) | 448.3 | 452.0 | 455.8 | 459.5 | 463.3 | 467.0 |
| Open-circuit voltage (Voc/V) | 49.30 | 49.44 | 49.58 | 49.72 | 49.86 | 50.00 |
| Short circuit current (Isc/A) | 11.75 | 11.81 | 11.87 | 11.92 | 11.97 | 12.04 |
| Peak power voltage (Vmp/V) | 40.32 | 40.45 | 40.59 | 40.72 | 40.86 | 41.00 |
| Peak power current (Imp/A) | 11.12 | 11.17 | 11.23 | 11.29 | 11.33 | 11.40 |
Mechanical Load Capacity
|
Maximum static load on the front (such as snow and wind) |
5400Pa |
|
Maximum static load on the back (such as wind) |
2400Pa |
|
Hail test |
Diameter 25 mm, impact speed 23 m/s |
Temperature Coefficient (STC test)
|
Temperature coefficient of short circuit current (Isc) |
+0.050%/℃ |
|
Temperature coefficient of open circuit voltage (Voc) |
-0.23%/°C |
|
Temperature coefficient of peak power (Pmax) |
-0.28%/°C |
Product Introduction
The lmmortal Light in Nature
- Bifacial dual-glass, ultra-low degradation, extremely reliable.
- High resistance water sealing and high-purity POE film, consistently stable performance.
- Customized low-lead electrodes, suited for humid and hot environments.
Pure light, creating a clean future
- Anti-Dust design, preventing shadows from affecting module performance.
- Increased power generation, reducing cleaning frequency and costs.
- Patented frame structure and gluing technique, stable and reliable.
Being Better is Our Standard
- Innovative HPBC+ cells, efficiency breakthrough at 25.8%.
- Simplicity redefined, a new aesthetic for modules.
- Extra long warranty maximizes product reliability.
Classic, but with Revolutionary Changes
- High-efficiency cells, stimulating outstanding performance.
- Simplicity redefined, a new aesthetic for modules.
- Full back-side welding, enhancing cell.
Contact Us
LONGi offers professional consulting services, technical knowledge of PV power plant solutions, and full-life-cycle O&M capabilities.
