580
Module Power
22.50
Module Efficiency
15
Product Warranty
25
Power Warranty
Core Advantages
High-efficiency Cells
The HPBC cell efficiency is higher than 25.5%.
Aesthetic Appearance
Hi-MO X6 simplifies the complexity and redefines the aesthetic concept of photovoltaic modules.
Outstanding Performance
Hi-MO X6 improves power generation capacity greatly with comprehensive upgrade of HPBC cells and modules.
Market-leading Reliability
FAQs
What are the models of Hi-MO X6 Explorer series?
Hi-MO X6 Explorer mono-facial module is available in 72c, 66c, and 54c. Hi-MO X6 Explorer bifacial dual-glass module is available in 72c and 54c.
What are the appearance styles of Hi-MO X6 Explorer series?
Hi-MO X6 Explorer mono-facial module has two aesthetic appearances. One is the Obsidian black appearance. The whole module is as black as obsidian, and the full mirror screen is naturally formed. The other is the appearance of Stars, the geometric design that shows simple and modern. Hi-MO X6 Explorer bifacial dual-glass module is available in the Stars appearance.
When can customers buy Hi-MO X6 Explorer series?
The product series was released in November 2022 and achieved mass production at scale in Q4 2022. From October 2, 2023, it has been supplied to the market and users under the refreshed Hi-MO X6 Explorer series.

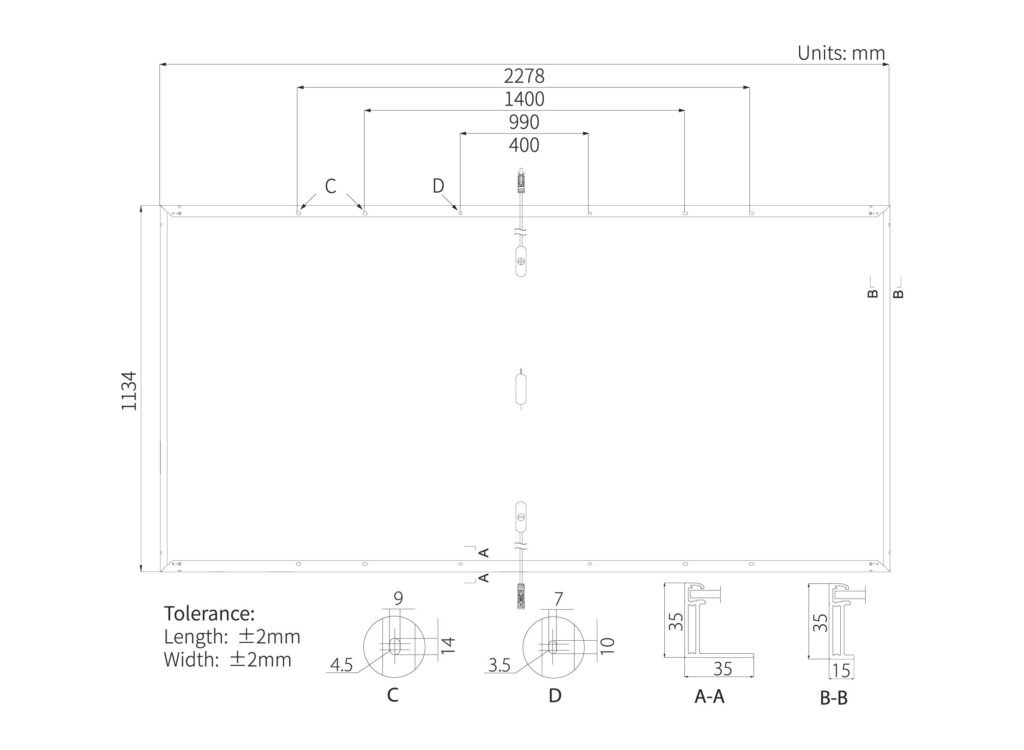

Mechanical Parameters
|
Layout |
144（6×24） |
|---|---|
|
Junction box |
Split junction box, IP68 |
|
Weight |
27.5kg |
|
Size |
2278X1134X35mm |
|
Packaging |
31 pcs./pallet 155 pcs./20GP 620 pcs./40HC |
Electrical Performance Parameters (STC Test)
Module model:
Maximum power (Pmax/W)
LR5-72HTH-570M:
570
LR5-72HTH-575M:
575
LR5-72HTH-580M:
580
LR5-72HTH-585M:
585
Module model:
Open-circuit voltage (Voc/V)
LR5-72HTH-570M:
51.91
LR5-72HTH-575M:
52.06
LR5-72HTH-580M:
52.21
LR5-72HTH-585M:
52.36
Module model:
Short circuit current (Isc/A)
LR5-72HTH-570M:
14.07
LR5-72HTH-575M:
14.14
LR5-72HTH-580M:
14.20
LR5-72HTH-585M:
14.27
Module model:
Peak power voltage (Vmp/V)
LR5-72HTH-570M:
43.76
LR5-72HTH-575M:
43.91
LR5-72HTH-580M:
44.06
LR5-72HTH-585M:
44.21
Module model:
Peak power current (Imp/A)
LR5-72HTH-570M:
13.03
LR5-72HTH-575M:
13.10
LR5-72HTH-580M:
13.17
LR5-72HTH-585M:
13.24
Electrical Performance Parameters (NOCT Test)
Module model:
Maximum power (Pmax/W)
LR5-72HTH-570M:
426
LR5-72HTH-575M:
430
LR5-72HTH-580M:
433
LR5-72HTH-585M:
437
Module model:
Open-circuit voltage (Voc/V)
LR5-72HTH-570M:
48.74
LR5-72HTH-575M:
48.88
LR5-72HTH-580M:
49.02
LR5-72HTH-585M:
49.16
Module model:
Short circuit current (Isc/A)
LR5-72HTH-570M:
11.36
LR5-72HTH-575M:
11.42
LR5-72HTH-580M:
11.47
LR5-72HTH-585M:
11.52
Module model:
Peak power voltage (Vmp/V)
LR5-72HTH-570M:
39.93
LR5-72HTH-575M:
40.07
LR5-72HTH-580M:
40.20
LR5-72HTH-585M:
40.34
Module model:
Peak power current (Imp/A)
LR5-72HTH-570M:
10.68
LR5-72HTH-575M:
10.73
LR5-72HTH-580M:
10.78
LR5-72HTH-585M:
10.84
Mechanical Load Capacity
|
Maximum static load on the front (such as snow and wind) |
5400Pa |
|
Maximum static load on the back (such as wind) |
2400Pa |
|
Hail test |
Diameter 25 mm, impact speed 23 m/s |
Temperature Coefficient (STC test)
|
Temperature coefficient of short circuit current (Isc) |
+0.050%/℃ |
|
Temperature coefficient of open circuit voltage (Voc) |
-0.23%/°C |
|
Temperature coefficient of peak power (Pmax) |
-0.29%/°C |

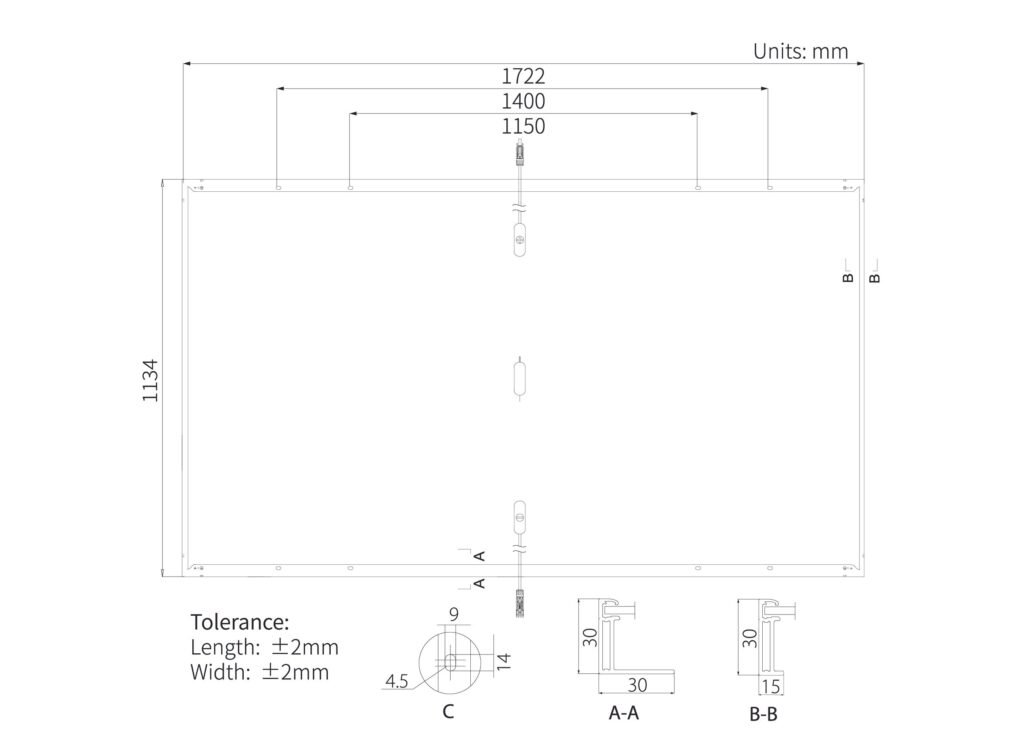

Mechanical Parameters
|
Layout |
108（6X18） |
|---|---|
|
Junction box |
Split junction box, IP68 |
|
Weight |
20.8kg |
|
Size |
1722X1134X30mm |
|
Packaging |
36 pcs./pallet 216 pcs./20GP 936 pcs./40HC |
Electrical Performance Parameters (STC Test)
Module model:
Maximum power (Pmax/W)
LR5-54HTH-425M:
425
LR5-54HTH-430M:
430
LR5-54HTH-435M:
435
LR5-54HTH-440M:
440
Module model:
Open-circuit voltage (Voc/V)
LR5-54HTH-425M:
38.93
LR5-54HTH-430M:
39.13
LR5-54HTH-435M:
39.33
LR5-54HTH-440M:
39.53
Module model:
Short circuit current (Isc/A)
LR5-54HTH-425M:
14.07
LR5-54HTH-430M:
14.15
LR5-54HTH-435M:
14.22
LR5-54HTH-440M:
14.30
Module model:
Peak power voltage (Vmp/V)
LR5-54HTH-425M:
32.64
LR5-54HTH-430M:
32.84
LR5-54HTH-435M:
33.04
LR5-54HTH-440M:
33.24
Module model:
Peak power current (Imp/A)
LR5-54HTH-425M:
13.03
LR5-54HTH-430M:
13.10
LR5-54HTH-435M:
13.17
LR5-54HTH-440M:
13.24
Electrical Performance Parameters (NOCT Test)
Module model:
Maximum power (Pmax/W)
LR5-54HTH-425M:
318
LR5-54HTH-430M:
321
LR5-54HTH-435M:
325
LR5-54HTH-440M:
329
Module model:
Open-circuit voltage (Voc/V)
LR5-54HTH-425M:
36.55
LR5-54HTH-430M:
36.74
LR5-54HTH-435M:
36.93
LR5-54HTH-440M:
37.11
Module model:
Short circuit current (Isc/A)
LR5-54HTH-425M:
11.36
LR5-54HTH-430M:
11.43
LR5-54HTH-435M:
11.49
LR5-54HTH-440M:
11.55
Module model:
Peak power voltage (Vmp/V)
LR5-54HTH-425M:
29.78
LR5-54HTH-430M:
29.97
LR5-54HTH-435M:
30.15
LR5-54HTH-440M:
30.33
Module model:
Peak power current (Imp/A)
LR5-54HTH-425M:
10.67
LR5-54HTH-430M:
10.72
LR5-54HTH-435M:
10.78
LR5-54HTH-440M:
10.85
Mechanical Load Capacity
|
Maximum static load on the front (such as snow and wind) |
5400Pa |
|
Maximum static load on the back (such as wind) |
2400Pa |
|
Hail test |
Diameter 25 mm, impact speed 23 m/s |
Temperature Coefficient (STC test)
|
Temperature coefficient of short circuit current (Isc) |
+0.050%/℃ |
|
Temperature coefficient of open circuit voltage (Voc) |
-0.230%/°C |
|
Temperature coefficient of peak power (Pmax) |
-0.290%/°C |
Mechanical Parameters
|
Layout |
108（6X18） |
|---|---|
|
Junction box |
Split junction box, IP68 |
|
Weight |
20.8kg |
|
Size |
1722X1134X30mm |
|
Packaging |
36 pcs./pallet 216 pcs./20GP 936 pcs./40HC |
Electrical Performance Parameters (STC Test)
Module model:
Maximum power (Pmax/W)
LR5-54HTB-420M:
420
LR5-54HTB-425M:
425
LR5-54HTB-430M:
430
LR5-54HTB-435M:
435
Module model:
Open-circuit voltage (Voc/V)
LR5-54HTB-420M:
39.03
LR5-54HTB-425M:
39.23
LR5-54HTB-430M:
39.43
LR5-54HTB-435M:
39.63
Module model:
Short circuit current (Isc/A)
LR5-54HTB-420M:
13.85
LR5-54HTB-425M:
13.93
LR5-54HTB-430M:
14.00
LR5-54HTB-435M:
14.08
Module model:
Peak power voltage (Vmp/V)
LR5-54HTB-420M:
32.76
LR5-54HTB-425M:
32.96
LR5-54HTB-430M:
33.16
LR5-54HTB-435M:
33.36
Module model:
Peak power current (Imp/A)
LR5-54HTB-420M:
12.83
LR5-54HTB-425M:
12.90
LR5-54HTB-430M:
12.97
LR5-54HTB-435M:
13.05
Electrical Performance Parameters (NOCT Test)
Module model:
Maximum power (Pmax/W)
LR5-54HTB-420M:
314
LR5-54HTB-425M:
318
LR5-54HTB-430M:
321
LR5-54HTB-435M:
325
Module model:
Open-circuit voltage (Voc/V)
LR5-54HTB-420M:
36.65
LR5-54HTB-425M:
36.83
LR5-54HTB-430M:
37.02
LR5-54HTB-435M:
37.21
Module model:
Short circuit current (Isc/A)
LR5-54HTB-420M:
11.19
LR5-54HTB-425M:
11.25
LR5-54HTB-430M:
11.31
LR5-54HTB-435M:
11.37
Module model:
Peak power voltage (Vmp/V)
LR5-54HTB-420M:
29.89
LR5-54HTB-425M:
30.08
LR5-54HTB-430M:
30.26
LR5-54HTB-435M:
30.44
Module model:
Peak power current (Imp/A)
LR5-54HTB-420M:
10.50
LR5-54HTB-425M:
10.56
LR5-54HTB-430M:
10.62
LR5-54HTB-435M:
10.68
Mechanical Load Capacity
|
Maximum static load on the front (such as snow and wind) |
5400Pa |
|
Maximum static load on the back (such as wind) |
2400Pa |
|
Hail test |
Diameter 25 mm, impact speed 23 m/s |
Temperature Coefficient (STC test)
|
Temperature coefficient of short circuit current (Isc) |
+0.050%/℃ |
|
Temperature coefficient of open circuit voltage (Voc) |
-0.230%/°C |
|
Temperature coefficient of peak power (Pmax) |
-0.290%/°C |
Hi-MO X6 Family Series
The lmmortal Light in Nature
Hi-Mo X6 Guardian
Anti Humidity & Heat
- Bifacial dual-glass, ultra-low degradation, extremely reliable.
- High resistance water sealing and high-purity POE film, consistently stable performance.
- Customized low-lead electrodes, suited for humid and hot environments.
Pure light, creating a clean future
Hi-Mo X6 Guardian
Anti Dust
- Anti-Dust design, preventing shadows from affecting module performance.
- Increased power generation, reducing cleaning frequency and costs.
- Patented frame structure and gluing technique, stable and reliable.
Being Better is Our Standard
Hi-Mo X6 Scientist
- Innovative HPBC+ cells, efficiency breakthrough at 25.8%.
- Simplicity redefined, a new aesthetic for modules.
- Extra long warranty maximizes product reliability.
Classic, but with Revolutionary Changes
Hi-Mo X6 Explorer
- High-efficiency cells, stimulating outstanding performance.
- Simplicity redefined, a new aesthetic for modules.
- Full back-side welding, enhancing cell crack resistance.
