415
Module Power
21.30
Module Efficiency
12
Product Warranty
25
Power Warranty
Core Advantages
Smart Soldering
Optimized Electrical Parameters
Optimized Module Size
Smart Module Packaging and Logistics
Gallium-doped Technology
FAQs
- LONGi has two series of solar module products: Hi-MO 4, Hi-MO 5. and each series contains bifacial and monofacial module. Hi-MO 4 and 54-cell type Hi-MO 5m is mainly used on industrial, commercial and residential roofs. Both bifacial and monofaical of Hi-MO 5 with 72-cell is mainly for large ground-mount power plants.
- LONGi analyzed various boundary conditions involved in module manufacturing and system applications, from production feasibility, module reliability, application compatibility to transportation and manual installation, and finally determined that 182 mm silicon wafers and modules were the best configuration for large-format modules. We believe that the size of a 182 mm module does not have major mechanical load and reliability consequences, Further size increasing of module will not bring value in manufacturing cost or system cost reduction, but increase reliability risks.During transportation, the 182 mm module can maximize the use of shipping containers and reduce transportation costs. We believe that the size of a 182 mm module does not have major mechanical load and reliability consequences, and any increase in module size may bring reliability risks.
- Bifacial modules are slightly more expensive than monofacial modules, but can generate more power under the right conditions. When the rear side of the module is not blocked, the light received by the rear side of the bifacial module can significantly improve energy yield. In addition, the glass-glass encapsulation structure of the bifacial module has better resistance to environmental erosion by water vapor, salt-air fog, etc. Monofacial modules are more suitable for installations in mountainous regions and distributed generation rooftop applications.
- Hi-MO 54c has an industry standardized size, which is conducive to the system costs caused by the standardization of brackets and inverters. The size and weight of module are suitable for single person handling, and the operation and installation are convenient, and it is perfectly suitable for 15A string inverter.
- LONGi has the largest module production capacity in the industry, with more than 65 GW in its integrated capacity network fully guaranteeing the supply of modules. In addition, the production network facilitates the global distribution of modules with the help of land transportation, railway transportation and sea transportation.
- LONGi launched Life-cycle Standards to guarantee the whole life-cycel quality.LONGi's Integrated capacity layout can guarantee the traceability of each module, and our highly automated production lines feature end-to-end inspection and analysis processes to ensure that each module meets the highest quality standards. We select module materials according to the highest standards, with the requirement that all new materials be subject to extended qualification and reliability tests before being incorporated into our products. Third-party labs like RETC and PVEL have ranked our modules among the highest quality products on the market.

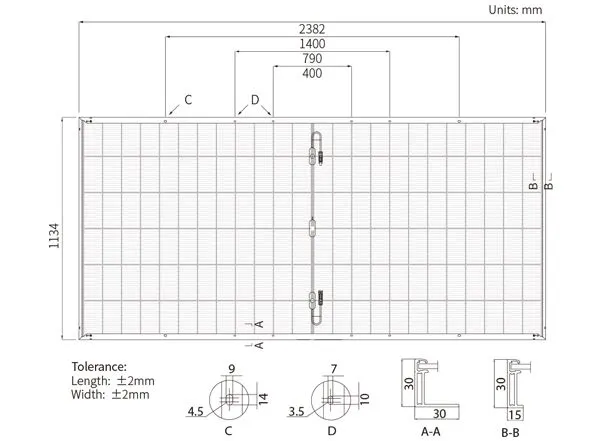

Mechanical Parameters
|
Layout |
144(6×24) |
|---|---|
|
Junction box |
Split junction box, IP68, 3 diodes |
|
Weight |
33.5kg |
|
Size |
2382×1134×30mm |
|
Packaging |
36pcs./pallet 144pcs./20GP 720pcs./40 HC |
Electrical Performance Parameters (STC Test)
|
Module Model |
LR7-72HYD-635M |
LR7-72HYD-640M |
LR7-72HYD-645M |
LR7-72HYD-650M |
LR7-72HYD-655M |
LR7-72HYD-660M |
|---|---|---|---|---|---|---|
|
Maximum power (Pmax/W) |
635 |
640 |
645 |
650 |
655 |
660 |
|
Open-circuit voltage (Voc/V) |
53.50 |
53.60 |
53.70 |
53.80 |
53.90 |
54.00 |
|
Short circuit current (Isc/A) |
15.01 |
15.09 |
15.17 |
15.25 |
15.33 |
15.41 |
|
Peak power voltage (Vmp/V) |
44.36 |
44.46 |
44.56 |
44.65 |
44.75 |
44.85 |
|
Peak power current (Imp/A) |
14.32 |
14.40 |
14.48 |
14.56 |
14.64 |
14.72 |
Electrical Performance Parameters (STC Test)
|
Module Model |
LR7-72HYD-635M |
LR7-72HYD-640M |
LR7-72HYD-645M |
LR7-72HYD-650M |
LR7-72HYD-655M |
LR7-72HYD-660M |
|---|---|---|---|---|---|---|
|
Maximum power (Pmax/W) |
483.4 |
487.2 |
491.0 |
494.8 |
498.6 |
502.4 |
|
Open-circuit voltage (Voc/V) |
50.84 |
50.94 |
51.03 |
51.13 |
51.22 |
51.32 |
|
Short circuit current (Isc/A) |
12.06 |
12.12 |
12.18 |
12.25 |
12.31 |
12.38 |
|
Peak power voltage (Vmp/V) |
42.16 |
42.25 |
42.35 |
42.43 |
42.53 |
42.62 |
|
Peak power current (Imp/A) |
11.48 |
11.54 |
11.61 |
11.67 |
11.73 |
11.80 |
Mechanical Load Capacity
|
Maximum static load on the front (such as snow and wind) |
5400Pa |
|
Maximum static load on the back (such as wind) |
2400Pa |
|
Hail test |
Diameter 25 mm, impact speed 23 m/s |
Temperature Coefficient (STC test)
|
Temperature coefficient of short circuit current (Isc) |
+0.05%/℃ |
|
Temperature coefficient of open circuit voltage (Voc) |
-0.200%/℃ |
|
Temperature coefficient of peak power (Pmax) |
-0.260%/℃ |
Mechanical Parameters
|
Layout |
132(6×22) |
|---|---|
|
Junction box |
Split junction box, IP68, 3 diodes |
|
Weight |
33.5kg |
|
Size |
2382×1134×30mm |
|
Packaging |
36pcs./pallet |
Electrical Performance Parameters (STC Test)
|
Module Model |
LR8-66HYD-645M |
LR8-66HYD-650M |
LR7-72HYD-645M |
LR7-72HYD-650M |
LR8-66HYD-655M |
LR8-66HYD-660M |
|---|---|---|---|---|---|---|
|
Maximum power (Pmax/W) |
645 |
650 |
655 |
660 |
665 |
670 |
|
Open-circuit voltage (Voc/V) |
49.62 |
49.72 |
49.82 |
49.92 |
50.02 |
50.12 |
|
Short circuit current (Isc/A) |
16.46 |
16.54 |
16.62 |
16.70 |
16.78 |
16.86 |
|
Peak power voltage (Vmp/V) |
40.88 |
40.98 |
41.08 |
41.18 |
41.28 |
41.38 |
|
Peak power current (Imp/A) |
15.78 |
15.86 |
15.94 |
16.03 |
16.11 |
16.19 |
Electrical Performance Parameters (NOCT Test)
| Module Model | LR8-66HYD-645M | LR8-66HYD-650M | LR8-66HYD-655M | LR8-66HYD-660M | LR8-66HYD-665M | LR8-66HYD-670M |
|---|---|---|---|---|---|---|
| Maximum power (Pmax/W) | 491.0 | 494.8 | 498.6 | 502.4 | 506.2 | 510.0 |
| Open-circuit voltage (Voc/V) | 47.16 | 47.25 | 47.35 | 47.44 | 47.54 | 47.63 |
| Short circuit current (Isc/A) | 13.22 | 13.28 | 13.35 | 13.41 | 13.48 | 13.54 |
| Peak power voltage (Vmp/V) | 38.85 | 38.95 | 39.04 | 39.14 | 39.23 | 39.33 |
| Peak power current (Imp/A) | 12.65 | 12.72 | 12.78 | 12.85 | 12.92 | 12.98 |
Mechanical Load Capacity
|
Maximum static load on the front (such as snow and wind) |
5400Pa |
|
Maximum static load on the back (such as wind) |
2400Pa |
|
Hail test |
Diameter 25 mm, impact speed 23 m/s |
Temperature Coefficient (STC test)
|
Temperature coefficient of short circuit current (Isc) |
+0.05%/℃ |
|
Temperature coefficient of open circuit voltage (Voc) |
-0.200%/℃ |
|
Temperature coefficient of peak power (Pmax) |
-0.260%/℃ |
